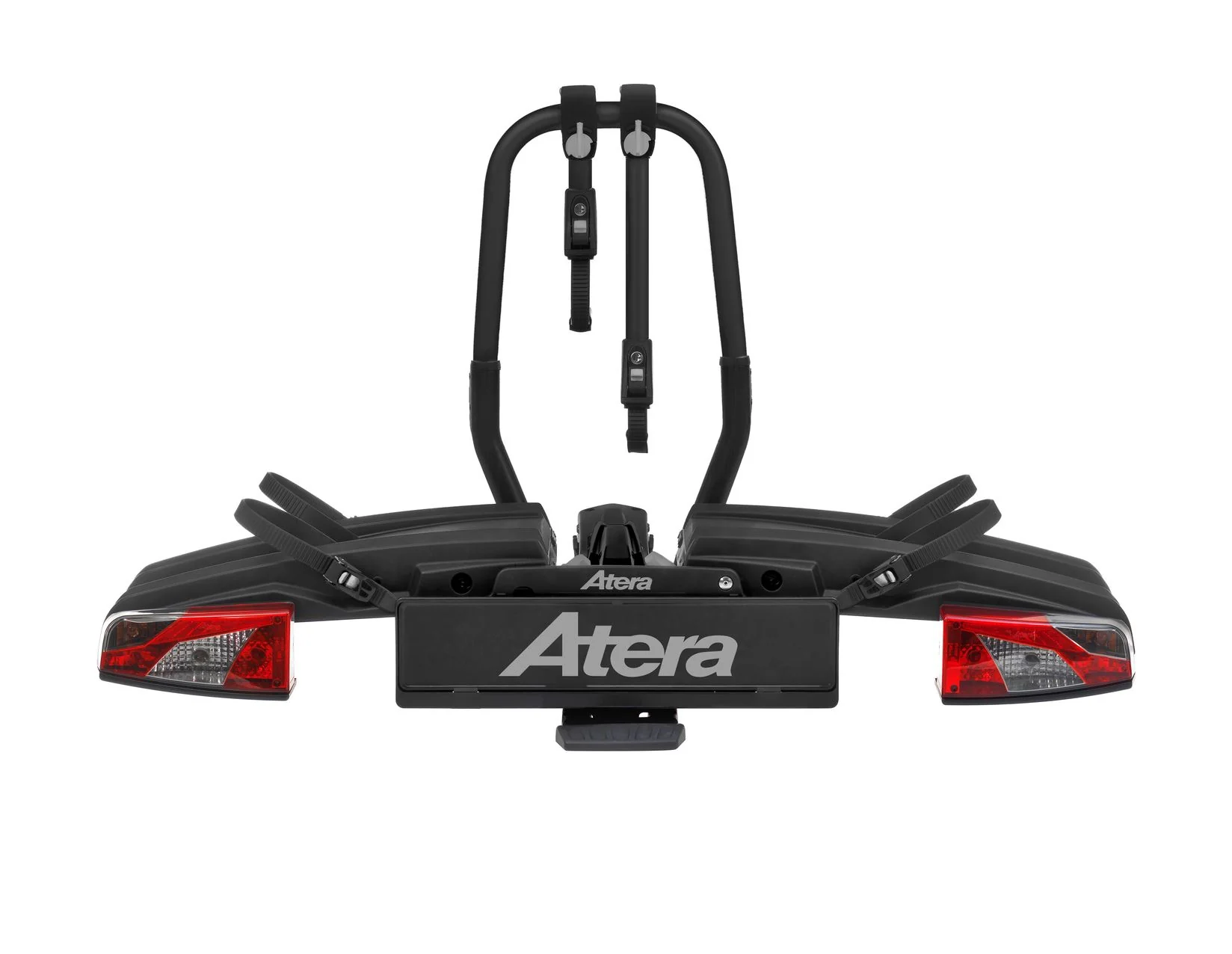

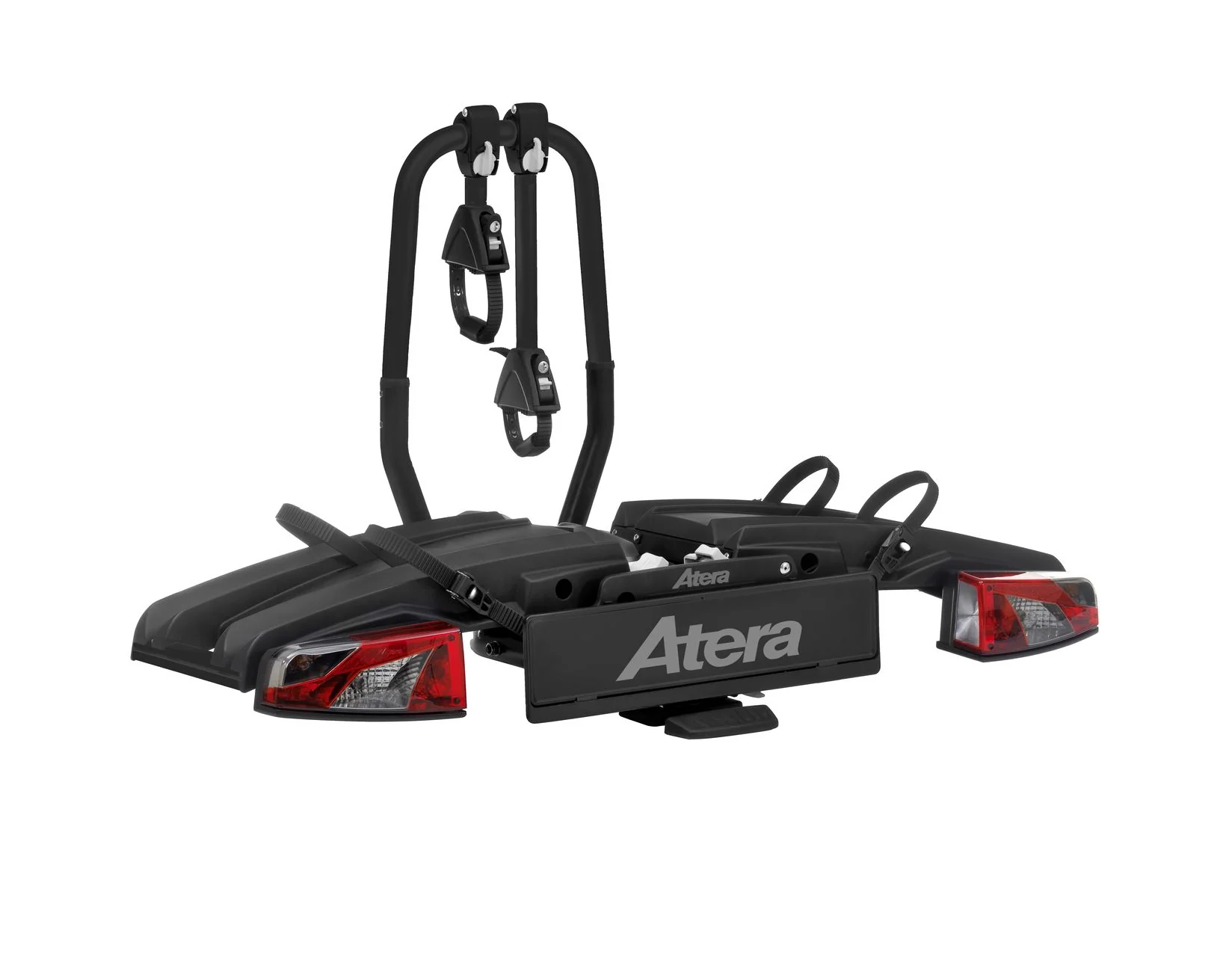

ATERA* REAR BIKE CARRIER GENIO PRO ADVANCED,FOR 2 BIKES

---COMPATIBLE-INFO---

Tourneo Courier 11/2023 - , Please note: rear door cannot be opened even when bike carrier is tilted

Transit Courier 11/2023 - , Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 10/2023 - , Please note: rear door cannot be opened even when bike carrier is tilted

Kuga 03/2024 -

All-Electric Capri 10/2024 -

Puma 04/2024 -

Transit Connect 04/2024 - , Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 06/2019 - 09/2023 , Please note: rear door cannot be opened even when bike carrier is tilted

Kuga 12/2019 - 02/2024

Puma 10/2019 - 03/2024

Focus 01/2022 -

Fiesta 01/2022 -

Mustang Mach-E 09/2020 -

Transit Custom 10/2023 - , Please note: rear door cannot be opened even when bike carrier is tilted

All-Electric Explorer 03/2024 -

Tourneo Connect 02/2022 - , Please note: rear door cannot be opened even when bike carrier is tilted

Ranger 06/2022 -

Transit Custom 02/2018 - 05/2019 , Please note: rear door cannot be opened even when bike carrier is tilted

Transit Courier 06/2018 - 07/2023 , Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 02/2018 - 05/2019 , Please note: rear door cannot be opened even when bike carrier is tilted

EcoSport 10/2017 -

Mondeo Hybrid Hybrid 09/2014 -

Fiesta 07/2017 - 12/2021

KA+ 06/2016 - 02/2018

Kuga 09/2016 - 11/2019

C-MAX 04/2015 -

Focus 09/2014 - 03/2018

Edge 09/2018 -

KA+ 03/2018 -

Tourneo Courier 06/2018 - 07/2023 , Please note: rear door cannot be opened even when bike carrier is tilted

Transit Connect 06/2018 - 03/2024 , Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Connect 06/2018 - 01/2022 , Please note: rear door cannot be opened even when bike carrier is tilted

Focus 04/2018 - 12/2021

Transit 05/2019 - , Please note: rear door cannot be opened even when bike carrier is tilted

Transit Custom 06/2019 - 09/2023 , Please note: rear door cannot be opened even when bike carrier is tilted

Fiesta Van 08/2019 - 12/2021

Mondeo 02/2019 -

Ranger 02/2019 - 11/2022

Transit Custom 08/2012 - 01/2018 , Please note: rear door cannot be opened even when bike carrier is tilted

Ranger 2012 - 01/2019

Kuga 11/2012 - 08/2016

B-MAX 2012 -

S-MAX 03/2010 - 04/2015

Focus 01/2011 - 08/2014

Fiesta 09/2008 - 10/2012

C-MAX 11/2010 - 03/2015

Tourneo Custom 08/2012 - 01/2018 , Please note: rear door cannot be opened even when bike carrier is tilted

Transit Connect 02/2014 - 05/2018 , Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Connect 02/2014 - 05/2018 , Please note: rear door cannot be opened even when bike carrier is tilted

Transit 01/2014 - 04/2019 , Please note: rear door cannot be opened even when bike carrier is tilted

Transit Courier 03/2014 - 05/2018 , Please note: rear door cannot be opened even when bike carrier is tilted

EcoSport 10/2013 - 09/2017

Mondeo 09/2014 - 01/2019

Galaxy 06/2015 -

S-MAX 06/2015 -

Edge 01/2016 - 08/2018

Fiesta 11/2012 - 06/2017

---DESCRIPTION---

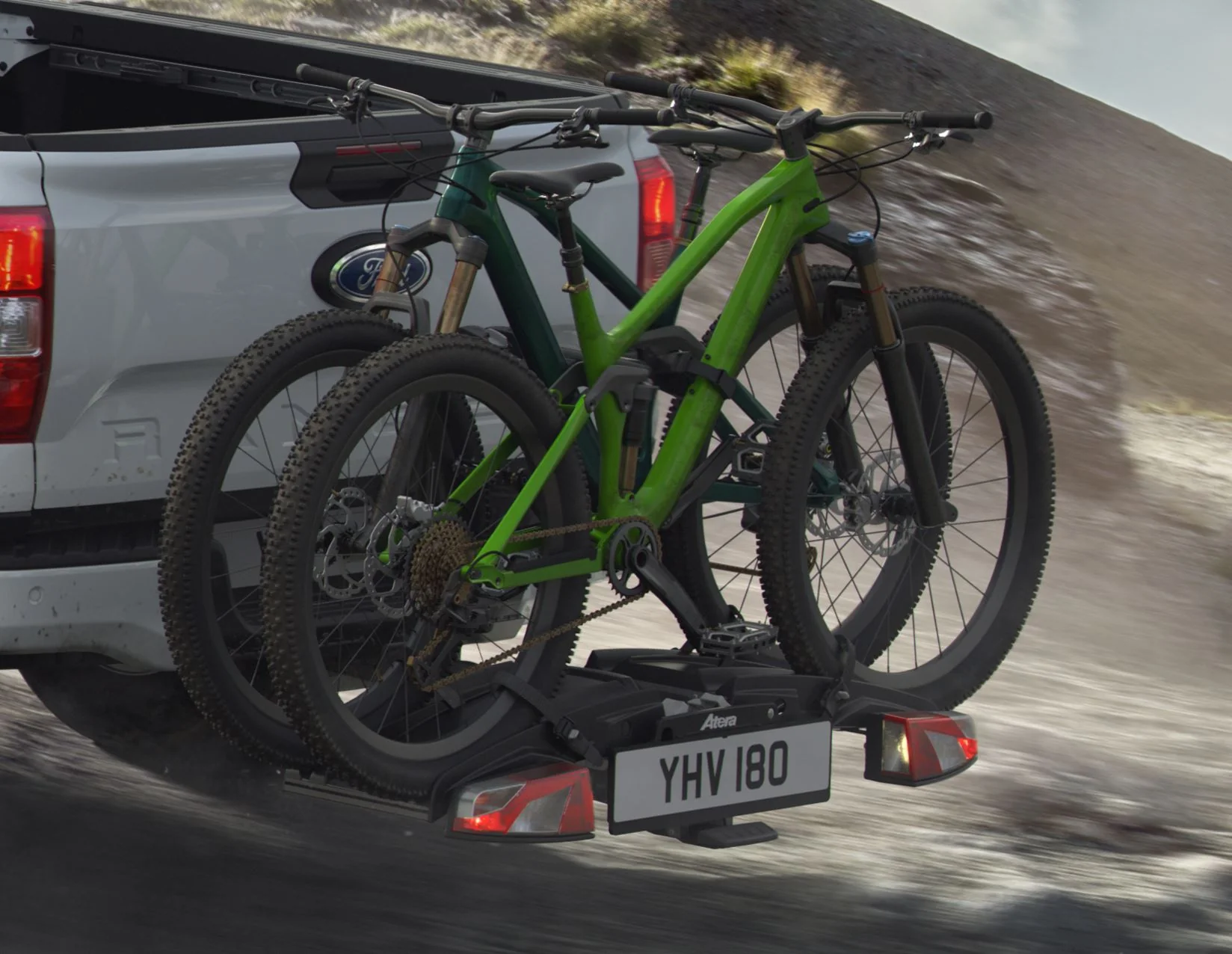

Tow-bar mounted bike-carrier allows you to transport your bike conveniently, with minimal lifting.

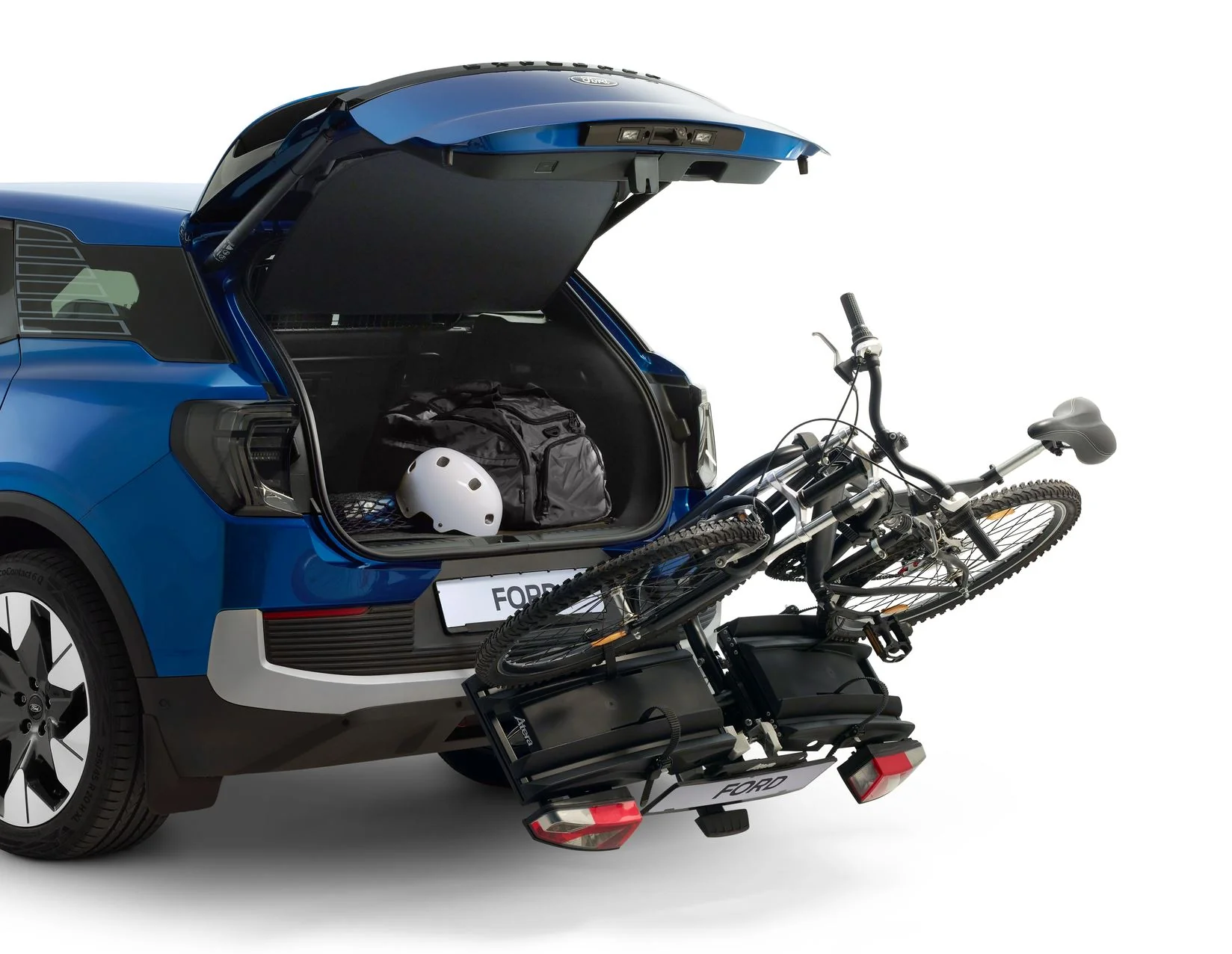

Tow bar mounted bike carrier for 2 bikes, extendable up to 3 bikes with 3rd bike extention kit (available separately).  Designed for bikes of all types and sizes, including e-bikes. Bikes are lockable to the carrier and the carrier is lockable to the tow bar. The complete carrier with bikes is tiltable in 2 positions to help enable easy access to the load compartment. Soft rubber padded gripping arms hold and help protect the bike frames.

Please note: The gross weight mounted on the tow bar (weight of accessory product and its load together) is not allowed to exceed the permitted nose weight limit.

• Additional 3rd bike rail extension kit can be attached and secured quickly without any tools (available separately)
• Material: Matt black anodised aluminium with fibre glass-reinforced plastic
• Gripper arm ratchet straps with over-tensioning protection
• Distance holders are removable and can be rotated and swivelled in any direction
• Quick release self-locking function
• Foldable: innovative new folding system helps protect the large clear glass rear lights
• 55° and 80° tilting angles for vehicles with larger tailgates
• Bike carrier weight: 21.4 kg
• Suitable for bike frames 25 - 80 mm
• Bike wheel rail spacing: 210 mm
• Tyre widths up to 3 inches
• Maximum load capacity: 60 kg (with 3rd bike extension kit 65 kg)
• Maximum load per rail: 30 kg (3rd bike extension rail 17.5 kg)
• Dimensions: 1240 x 705 x 650 mm
• Dimensions folded: 385 x 705 x 650 mm
• ECE type approval
• TÜV-verified
• City crash tested

---GPSR-INFO---

These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.
